1*2 1*3 1*5 1*6 1*7 FBT Fiber Optic Splitter with Single Window
Description:
FBT Fiber Optic Splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
Feature Of Fiber Optic Splitter
- Good uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Stability Telcordia GR-1221 and GR-1209
- High Reliability and Stability
Application:
Long-haul Telecommunications
CATV Systems & Fiber Optic Sensors
Fiber Optic communication system
Local Area Network
Specification:
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 |
| Operating Wavelength (nm) | 1310/1490/1550 |
| Fiber Type | G657A1 or customer specified |
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 17/17.4 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 |
| Temperature Stability (-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 |
| Storage Temperature (℃) | -40～85 |
Advantages Of Fiber Optic Splitter
1. Adopt high strength stainless steel, pass salt spray test
2. Ferrule core is less than 0.2um
3. Adopt 100% new raw material, ROHS compliance
4. Low Insertion loss
5. Low PDL Compact Design
6. Good channel-to-channel uniformity
7. Wide Operating Wavelength: from 1260nm to 1650nm
8. Wide Operating Temperature: from -40℃ to 85℃

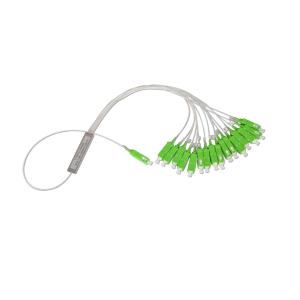

Product Picture:
