Brand Name : TTI
Model Number : ADSS
Certification : ISO9001
Place of Origin : China
MOQ : 10000M
Price : 0.3
Payment Terms : L/C, D/A, D/P, T/T, , PayPal,
Supply Ability : 100000 PCS/Month
Delivery Time : 5-9 Days
Packaging Details : wood Drum
Product Name : ADSS Fiber Optic Cable
Application : Aerial
Color : Black
Span : 100M
Package : Standard

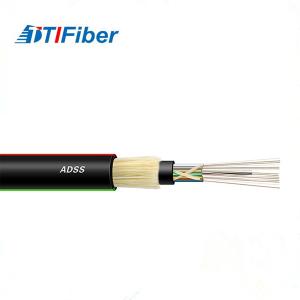

G652D ADSS All Dielectric 24cores 100m Span Self-Supporting Aerial Fiber Optic Cable
ADSS Fiber Optic Cable
The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member.
The tubes (and fillers) are stranded around the strength member into a compact and circular core.
After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
ADSS Fiber Optic Cable Feature:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction
ADSS Fiber Optic Cable Optical Characteristics:
Item | G.652 | G.655 | 50/125um | 62.5/125um | |
---|---|---|---|---|---|
Attenuation | @850nm | ≤3.0dB/km | ≤3.2dB/km | ||
@1300nm | ≤1.0dB/km | ≤1.2dB/km | |||
@1310nm | ≤0.36dB/km | ≤0.40dB/km | |||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
Bandwidth (Class A) | @850nm | ≥500MHZ.km | ≥200MHZ.km | ||
@1300nm | ≥1000MHZ.km | ≥600MHZ.km | |||
Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable cut-off wavelength | ≤1260mm | ≤1450mm |
![]() |
G652D ADSS Aerial Fiber Optic Cable Self Supporting 24cores 100m Span Images |
