1.6mm 2.0mm 3.0mm Fiber Optic Patch Cord LC To SC Single Mode

Product Categories
TTI Fiber Communication Tech. Co., Ltd.
Contact Now

1.6mm 2.0mm 3.0mm Fiber Optic Patch Cord LC To SC Single Mode

  • 1
  • 2
  • 3

Brand Name : TTI

Model Number : LC-SC simplex patch cord

Certification : Standard Certification

Place of Origin : China

MOQ : Negociated

Price : Negociated

Payment Terms : L/C, D/A, D/P, T/T, ,

Supply Ability : 10000 pieces

Delivery Time : 1-3 Work Days

Packaging Details : Standard Package(Surport OEM/ODM)

Fiber type : G652D,G657A,G655

Application : FTTH FTTB FTTX Network

Connector type : SC/Apc & SC/Upc

Material : PVC/LSZH

Product namee : Fiber Optic Patch Cord

Color : Yellow

Wavelength : 1310nm or 1550nm

Fiber count : Simplex or Duplex

Polish : PC/UPC/APC

Type : Single mode/Multi-mode

Quality control : 100% test before shipping

Length : 1m 2m 3m or Customized

Contact Now

1.6mm 2.0mm 3.0mm Fiber Optic Patch Cord LC To SC Single Mode

LC-SC Single Mode 1.6mm 2.0mm 3.0mm Fiber Optic Patch Cord

Specification:

TypeStandard,Master
StyleLC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber

Singlemode/Multimode
50/125, 62.5/125 (Multimode) OM2&OM1
50/125, 10G (Multimode) OM3

Cable

Simplex, Duplex
Φ3.0mm, Φ2.0mm, Φ0.9mm
PVC or LSZH

Polishing MannerUPC,SPC,APC (8°& 6°)
Insertion Loss

≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750

Return Loss
(Singlemode)

UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750

Repeatability±0.1dB
Operating temperature-400C to 850C

Geometry Requirement
( Singlemode)

Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC ZX-1

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.

9/125 micron single mode fiber optic patch cord is suitable for enterprise network, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed. It meets RoHS compliant, and cable is optically tested for insertion loss to ensure high quality.

1.6mm 2.0mm 3.0mm Fiber Optic Patch Cord LC To SC Single Mode


Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and stability.

4. Environmentally Stable

Application:

1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor

5. Industry and military application

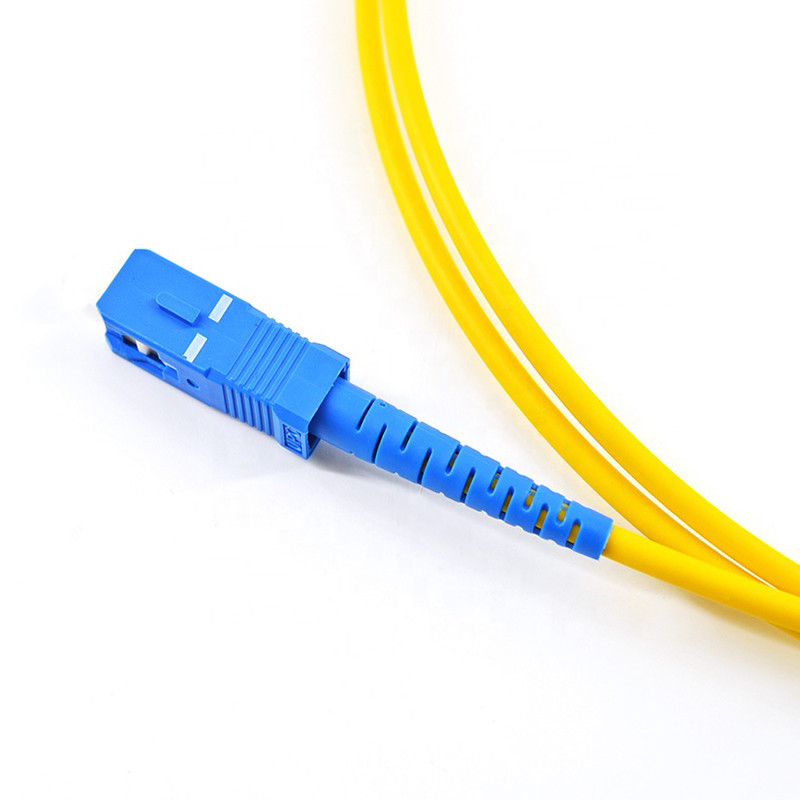

Product Picture:

1.6mm 2.0mm 3.0mm Fiber Optic Patch Cord LC To SC Single Mode

1.6mm 2.0mm 3.0mm Fiber Optic Patch Cord LC To SC Single Mode

1.6mm 2.0mm 3.0mm Fiber Optic Patch Cord LC To SC Single Mode

FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3.Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
