24core Singlemode ADSS Aerial Optical Cable With Single Sheath Span 100M

  • 1
  • 2

Brand Name : TTI OR OEM

Model Number : ADSS

Certification : ISO9001/CE/ROHS

Place of Origin : China

MOQ : 1000M

Payment Terms : L/C, D/A, D/P, T/T, , PayPal,

Supply Ability : 100000 PCS/Month

Delivery Time : 5-9 Days

Packaging Details : wood Drum

Product Name : ADSS Aerial Fiber Cable

Application : Outdoor, Aerial

Color : Black or OEM

Fiber model : SM MM

Strength Member : FRP

Material : PE Outer Jacket

Package : 2km/roll

Price : 0.13

Contact Now

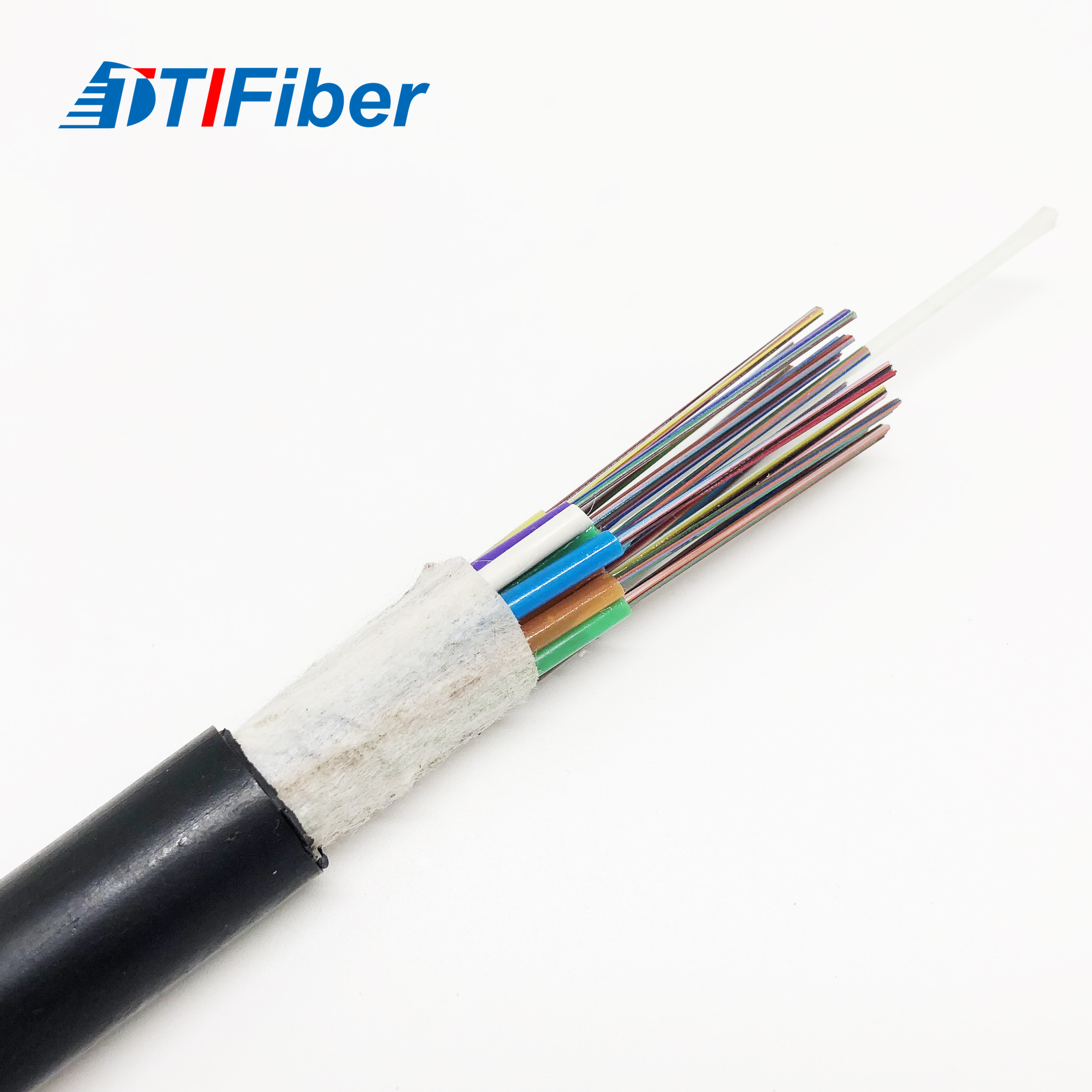

24core Singlemode ADSS Aerial Optical Cable with Single Sheath Span 100M

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member.

The tubes (and fillers) are stranded around the strength member into a compact and circular core.

After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Feature:

Excellent mechanical and temperature performance

PE sheath protects cable from ultraviolet radiation.

100% core filling water prevent cable jelly to ensure the cable watertight.

Special tube filling compound ensure a critical protection of fiber and resist the water.

Single FRP as the central strength member to withstand axial loads.

Optical Characteristics:

Item G.652 G.655 50/125um 62.5/125um
Attenuation @850nm 　 　 ≤3.0dB/km ≤3.2dB/km
@1300nm 　 　 ≤1.0dB/km ≤1.2dB/km
@1310nm ≤0.36dB/km ≤0.40dB/km 　 　
@1550nm ≤0.22dB/km ≤0.23dB/km 　 　

Bandwidth

(Class A)

 @850nm 　 　 ≥500MHZ.km ≥200MHZ.km
@1300nm 　 　 ≥1000MHZ.km ≥600MHZ.km
Numerical aperture 　 　 0.200±0.015NA 0.275±0.015NA
Cable cut-off wavelength ≤1260mm ≤1450mm 　 　


24core Singlemode ADSS Aerial Optical Cable With Single Sheath Span 100M24core Singlemode ADSS Aerial Optical Cable With Single Sheath Span 100M
