Stranded Loose Tube Light-Armored Cable GYTY53

Product Categories
TTI Fiber Communication Tech. Co., Ltd.
Contact Now

Stranded Loose Tube Light-Armored Cable GYTY53

Brand Name : TTI OR OEM

Model Number : GYFTY53

Certification : ISO9001/CE/ROHS

Place of Origin : China

MOQ : 1000M

Payment Terms : L/C, D/A, D/P, T/T, ,

Supply Ability : 100000 PCS/Month

Delivery Time : 5-17 Days

Packaging Details : wood Drum

Product Name : Light-armored Cable GYFTY53

Application : FTTH,OUTDOOR,Aerial

Color : Black or OEM

Cable Diameter : 100M,OEM

Strength Member : OEM

Material : Top

Package : Standard

Way : Portable

Price : 0.13

Contact Now

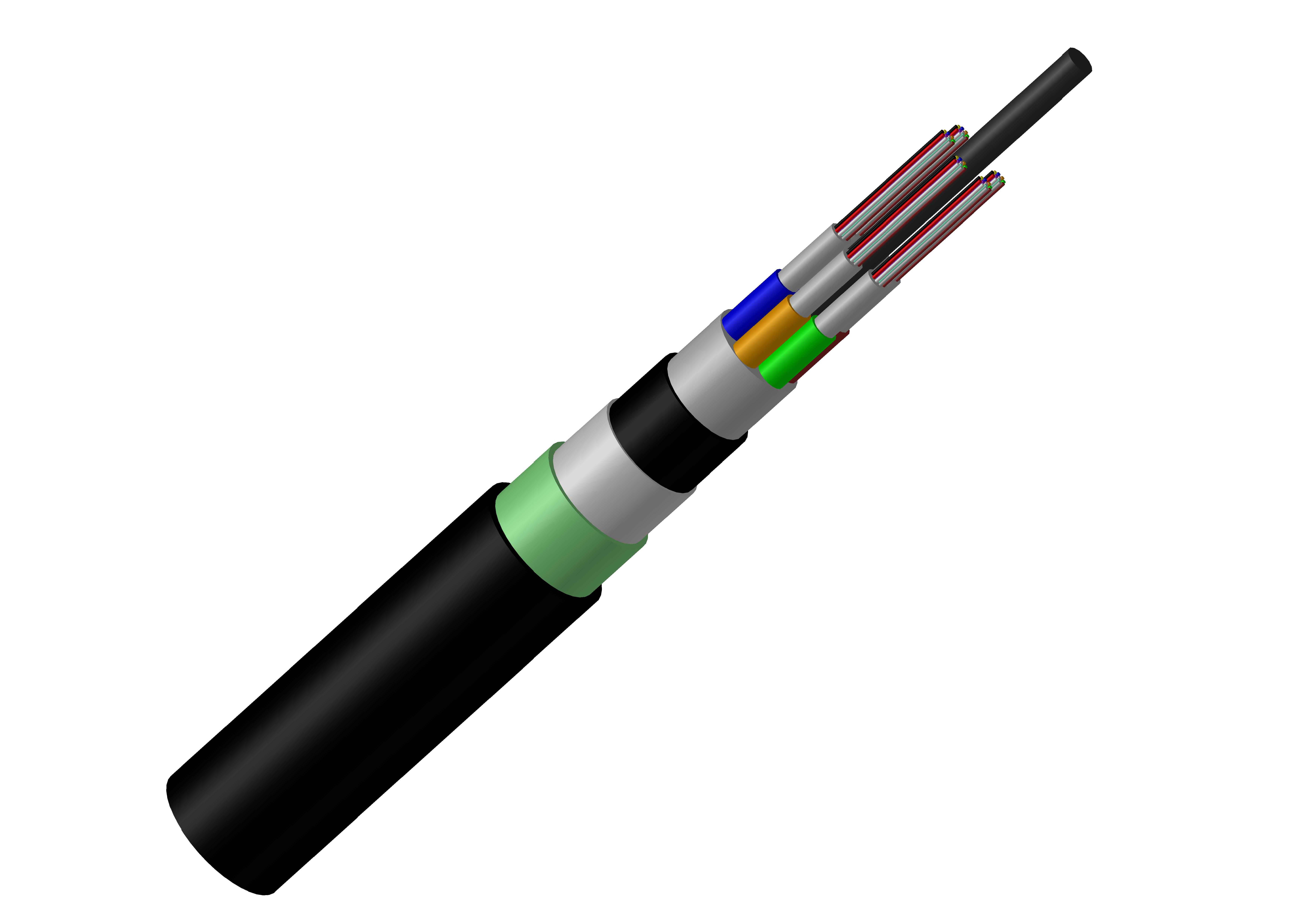

Stranded Loose Tube Light-armored Cable GYTY53
Product Description

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.

Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied.

After the water blocking material is placed outside the inner sheath, the PSP is longitudinally applied.And then,the cable is completed with a PE outer sheath.

Stranded Loose Tube Light-Armored Cable GYTY53

Feature

♦ Excellent mechanical and temperature performance
♦ Special tube filling compound ensure a critical protection of fiber and resist the water.
♦ Single steel wire as the central strength member to withstand axial loads.
♦ Inner sheath effectively lower the external mechanical loading.
♦ Corrugated steel tape longitudinal cover cable core and provide good crush resistance.
♦ PE sheath protects cable from ultraviolet radiation.
♦ 100% core filling water prevent cable jelly to ensure the cable watertight.


♦ Welcome to contact us~

Choose TTI, to make your Internet Expedite!


Product Tags:

Stranded Loose Tube Light Armored Cable



GYTY53 Armored Cable



125μm loose tube fiber optic cable
