MU Simplex Duplex Fiber Optic Connector for OM3 OM4 Fiber Optic Cable

Brand Name : TTI

Model Number : FOC-MU

Certification : ISO, SGS, ROHS

Place of Origin : China

MOQ : 10 pcs

Price : Negotiation

Payment Terms : T/T, , PayPal

Supply Ability : 8000 pcs/day

Delivery Time : 2-3 days

Packaging Details : PE bag

Connector Type : MU

Ferrule End-face : PC, UPC,APC

Fiber Type : Singlemode, Multimode

Cable Type : Simplex, Duplex

Cable OD : 0.9/2.0/3.0mm

Housing Material : Plastic

Insertion Loss : <0.3dB

Return Loss : >50dB(SM), >35dB(MM)

Contact Now

MU Simplex Duplex Fiber Optic Connector for OM3 OM4 Fiber Optic Cable

Description:

MU looks a miniature SC with a 1.25 mm ferrule.

Features:

Easy installation

Good durability

Good temperature performance

Precision mechanical dimension

Boots in a variety of colors

Application:

Fiber optic data transmission

Optical access network

Fibre to the Subscriber (FTTx) applications

Fiber optic equipment

Specification:

Item	SM(Single Mode)			MM(Multimode)
Fiber Cable Type	G652/G655/G657			OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125			62.5/125	50/125
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0
Endface Type	PC	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.15	<0.2	<0.1	<0.1
Return Loss (dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2		<0.3	<0.15
Interchangeability (dB)	<0.1		<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (℃)	-40~+80

Order Information:

Connector type: FC, SC, LC, ST.
Ferrule End-face: PC, UPC, APC.
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um).
Cable Quantity: Simplex, Duplex.
Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm.

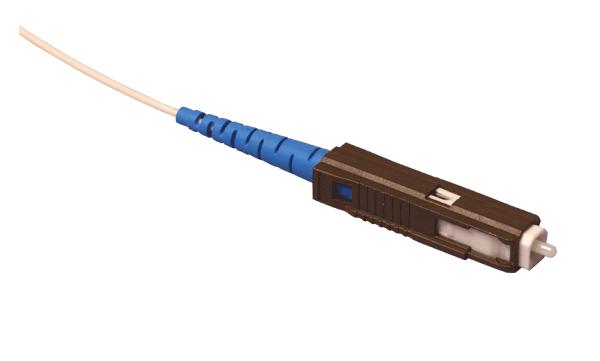

Product Picture:

MU Simplex Duplex Fiber Optic Connector for OM3 OM4 Fiber Optic Cable
