SM SC FC LC Fiber Connector APC OS1 OS2 Single Mode Fiber Connectors

Brand Name : TTI

Model Number : FOC

Certification : ISO, SGS, ROHS

Place of Origin : China

MOQ : 10 pcs

Price : Negotiation

Payment Terms : T/T, , PayPal

Supply Ability : 8000 pcs/day

Delivery Time : 2-3 days

Packaging Details : PE bag

Connector Type : SC/FC/LC/ST/MTRJ/MU ect.

Ferrule End-face : PC, UPC,APC

Fiber Type : Singlemode, Multimode

Cable Type : Simplex, Duplex

Cable OD : 0.9/2.0/3.0mm

Housing Color : Blue, Green, Beige

Insertion Loss : <0.3dB

Return Loss : >50dB

Contact Now

APC OS1 OS2 Fiber Optic Connector with SM SC FC LC Ferrule

Features:

Compliance with the Standard of IEC and YD/T1272

High Return Loss and Low Insertion Loss

Good Repeatability and Interchangeability

PC,UPC,APC Polishing

Single mode,Multi-Mode Versions

Various Types of Connectors:FC,SC,ST,MU,LC,MTRJ,MPO, etc

Ribbon Pigtail Cable,Bunchy Pigtail Cable,Waterproof Pigtail Cable

Multiple option of Optic Cable Core,Simplex,Twin cores,4 Cores,6 Cores,12 Cores,24 Cores, 48 Cores

Application:

Telecommunication Network

Testing Equipment

Local Area Network(LAN)

CATV

FTTH

Specification:

Item	Single Mode	Multi Mode
Insertion Loss	≦0.2dB	≦0.3bB
Insert-Pull Test	1000 times
Operating Temperature	-40°C ~ +85°C
Ceramic Ferrule Specification	125.5um concentricity deviations:≦1um	127um concentricity deviations:≦3um
Suitable Fiber	9/125um	50/125um,62.5/125um

Order Information:

Item	Connector Description	Item	Connector Description
	PC/UPC/APC		PC/UPC/APC
Connector Singlemode 9/125	ST	Connector Multimode (50/125 or 62.5/125)	ST
	SC		SC
	FC		FC
	LC		LC
	MU		MU
	MTRJ(female)		MTRJ(female)
	MTRJ(male)		MTRJ(male)
	DIN

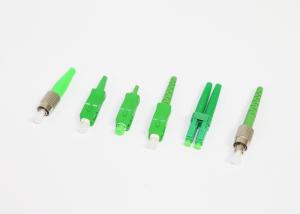

Product Picture:

SM SC FC LC Fiber Connector APC OS1 OS2 Single Mode Fiber Connectors
